S136 / S136H Stainless Mold Steel, Precision Milled Precision CNC Machining & Wholesale Supply

Steel Grade / Brand

S136 / S136H ESR (Stavax ESR / DIN 1.2083 ESR / AISI 420 ESR)

Primary Applications

High-gloss medical product molds, PVC anti-corrosion molds, optical components

Product Form

Plate & Block

Custom-Machined Steel

Made to Your Drawings — Material and Precision Machining Included.

Precision Machining

6-Face Precision Milling; Total Machining Allowance: 0.10–0.36 mm, Subject to Drawing Requirements.

Minimum Order Quantity(MOQ)

1 Piece — Start with a Small Order to Evaluate Our Quality and Service Before Committing to Larger Purchases.

Lead Time & Shipping

Preparation Time: 3–5 Days After All Order Details Are Confirmed. Shipping Options: Sea Freight, Air Freight, or Express Courier. Transit Time Depends on the Selected Shipping Method and Destination.

Hardness

Annealed (≤ 215 HB) / S136H Pre-hardened (29–33 HRC) / Quenched (48–52 HRC)

Key Composition

C: 0.38%, Cr: 13.6%, Mn: 0.5%, Si: 0.8%

Q1: S136 vs. FT64: How do they compare, and when should you choose each?

Both are high-chromium stainless mold steel plates, but they cater to different heat-treatment strategies and polishing capability tiers:

  • S136 (ESR Vacuum Heat-Treatable Stainless Steel):

    • Advantages: Produced via Electro-Slag Remelting (ESR), vacuum heat-treated to 48–52 HRC. Offers ultra-high steel purity, exceptional wear resistance, and optical-grade mirror polishability (SPI A1/A0) along with superior corrosion protection.

    • Limitations: Requires post-machining heat treatment, which adds lead time and requires precise thermal control to manage distortion risk.

  • FT64 (Pre-Hardened High-Hardness Stainless Steel):

    • Advantages: Delivered pre-hardened at 38–42 HRC, completely eliminating post-machining heat treatment risks, thermal distortion, and extra process lead time while providing excellent corrosion resistance.

    • Best Choice: Choose S136 for optical lenses, transparent light guides, medical clean-room molds, or high-volume production requiring maximum cavity hardness and flawless optical finishes. Choose FT64 for fast-turnaround medical packaging, precision electronic components, or molds handling mildly corrosive resins where pre-hardened convenience and high rust resistance are needed without heat treatment.

Q2: S136 vs. NAK80: How do they compare, and when should you choose each?

This comparison contrasts a heat-treatable ESR stainless steel plate with a pre-hardened precipitation-hardening steel plate:

  • NAK80 (Pre-Hardened High-Polish Steel):

    • Advantages: Delivered pre-hardened at 37–43 HRC, offering zero heat-treatment distortion risk, outstanding machining ease, excellent EDM texturing response, and effortless weld repairability.

    • Limitations: Lacks high-chromium stainless protection; susceptible to rust in humid environments or when molding corrosive resins.

  • S136 (ESR Stainless Mold Steel):

    • Advantages: Reaches higher working hardness (48–52 HRC) with strong stainless corrosion resistance, protecting cavity surfaces and internal cooling channels against pitting and rust while providing higher abrasive wear resistance.

    • Best Choice: Choose NAK80 for complex aesthetic electronic housings, auto interior components, or transparent non-corrosive plastic parts where fast toolmaking, fine EDM texture, and easy polishability take priority. Choose S136 when molding corrosive polymers (e.g., PVC or flame-retardant resins), operating in humid cooling conditions, or requiring higher surface hardness and optical mirror polishing.

Q3: Why choose 6-side precision pre-milled S136 plates over raw mill plates?

S136 plates are engineered for high-precision, optical-grade mold cavities. Selecting 6-side precision pre-milled S136 plates provides essential technical and quality safeguards:

  • Complete Removal of Decarburized Surface Layer: Raw hot-rolled or forged mill plates carry scale, micro-cracks, and a soft decarburized surface layer. Pre-milled plates completely remove these surface defects, ensuring you heat-treat sound, fully dense stainless core steel to avoid soft spots or polishing pits.

  • Protect Fine CNC Tooling & Cut Lead Time: Plates arrive squared to precise dimensions. Your machine shop can bypass heavy, tool-wearing rough face-milling and proceed directly to precision CNC finishing, wire EDM, or polishing.

  • Tight Tolerances for Direct Fixturing: Delivered with strict thickness, width, and squareness tolerances, enabling immediate, secure setup in precision vises or magnetic fixtures without manual indicator alignment.

  • Lower Total Production Cost & Stress Relief: Pre-milling relieves surface residual stresses prior to vacuum heat treatment, significantly reducing the risk of thermal warping while cutting shop spindle hours, tool wear, and scrap costs.

High-Purity S136 / S136H ESR Precision Machined Stainless Mold Steel Plate Premium ESR stainless mold steel delivering exceptional rust resistance and high polishability. Supplied precision-milled or ground for medical-grade plastic injection molding. Key Advantages & Capabilities

  • Rust & Corrosion Proof: Protects cooling channels against rusting.

  • Precision Milled Stock: Tight squareness tolerances to save machine shop time.

  • ESR Refined: High purity for consistent mirror polishing performance. 💡 Optional On-Demand Machining & Wire-EDM Services

  • 6-Side Squaring: Precision pre-machined mold bases.

  • Wire EDM: Precision slotting and core cavity profiling.

  • Deep Hole Drilling: Conformal cooling line drilling. Technical Specifications

  • Grades: S136 (Annealed) | S136H (Pre-Hardened 30–35 HRC)

  • Condition: ESR Annealed / Pre-Hardened | Precision Milled

  • Applications: Medical device molds, PVC injection tooling, clear container cavities.

  • 📩 Upload your CAD drawings or dimensional requirements for a 2-hour quote.

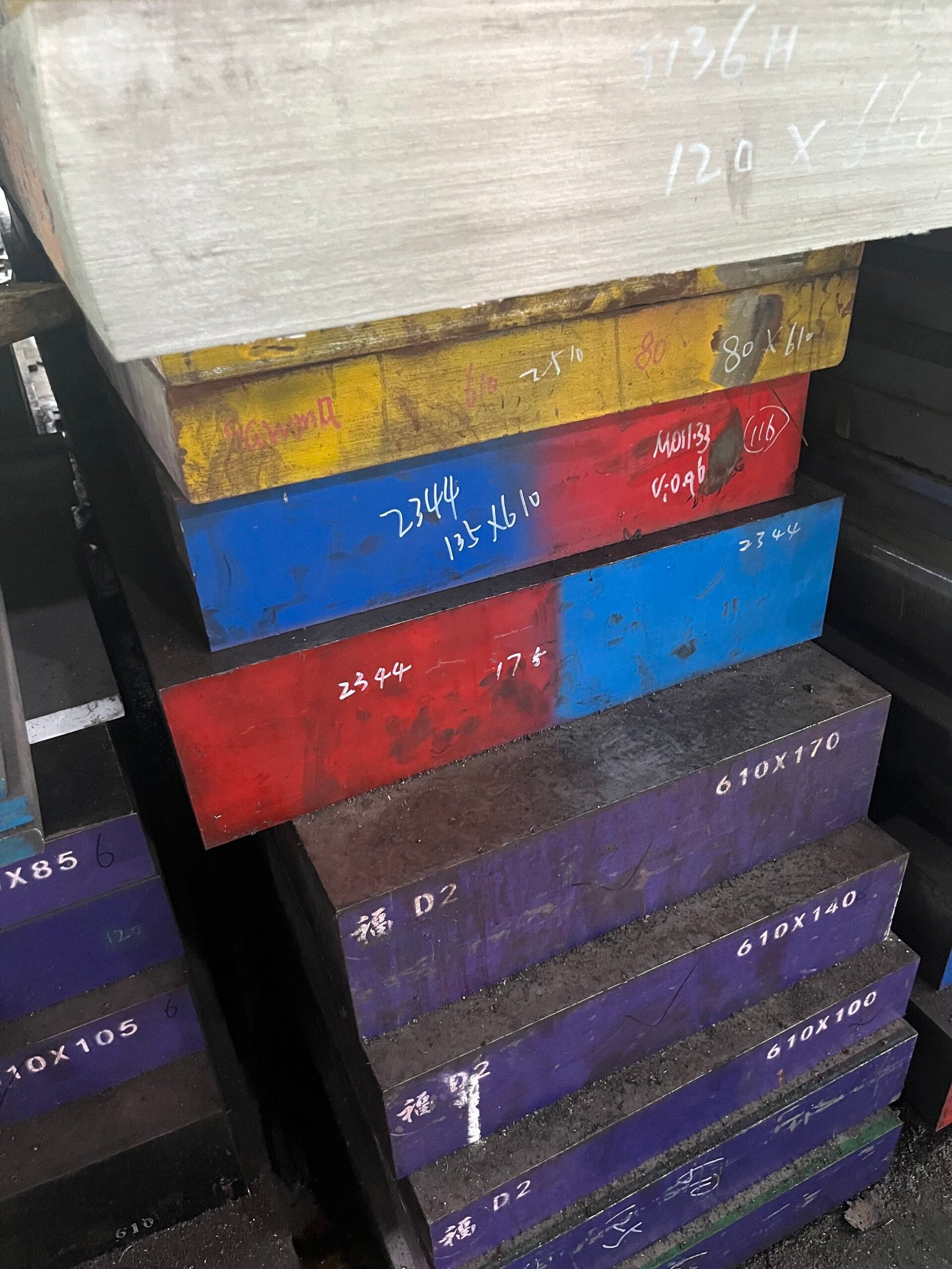

img 2989

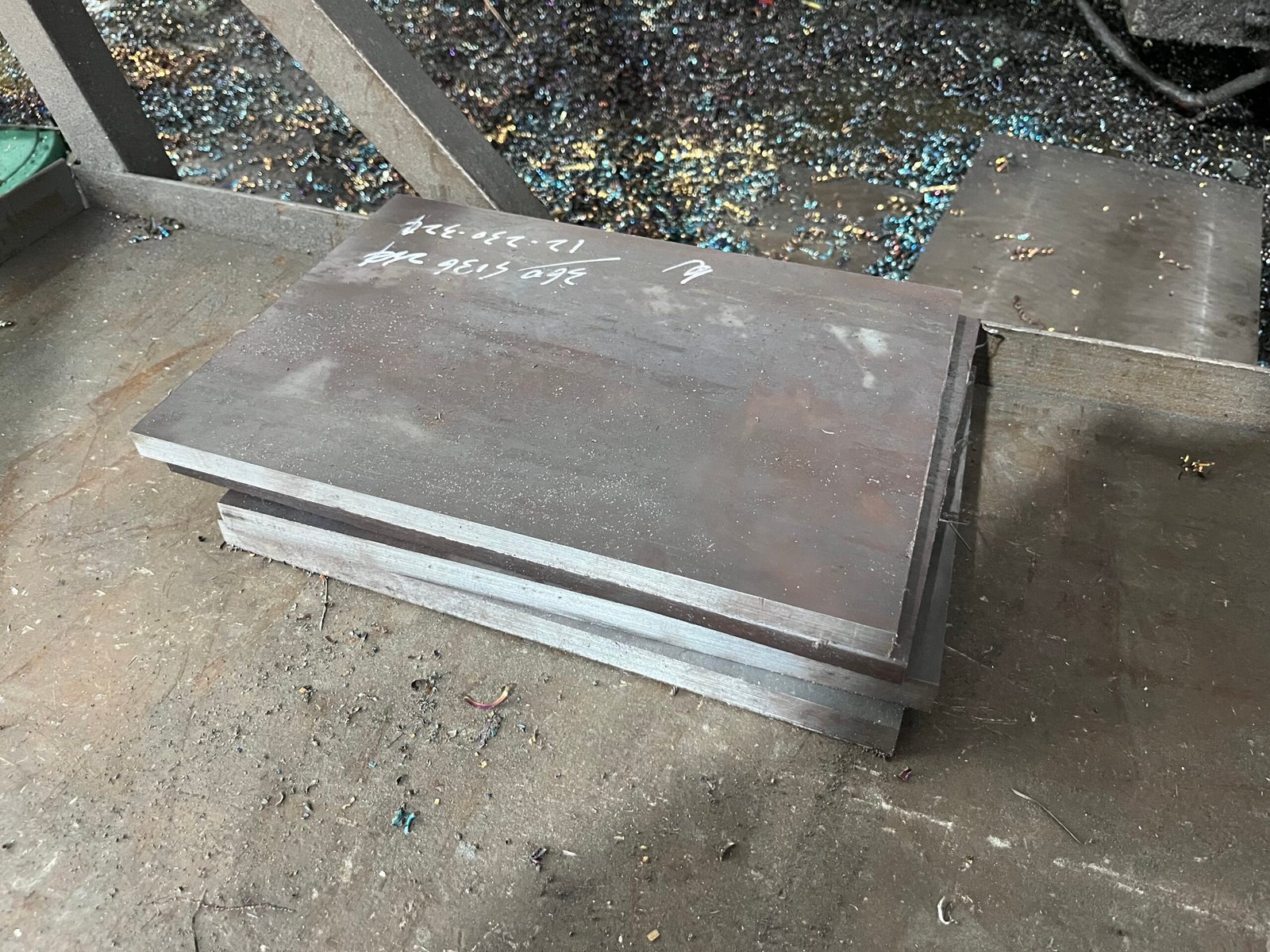

2083 mold steel plate and round bar | anti corrosion plastic mold steel supplier kutu

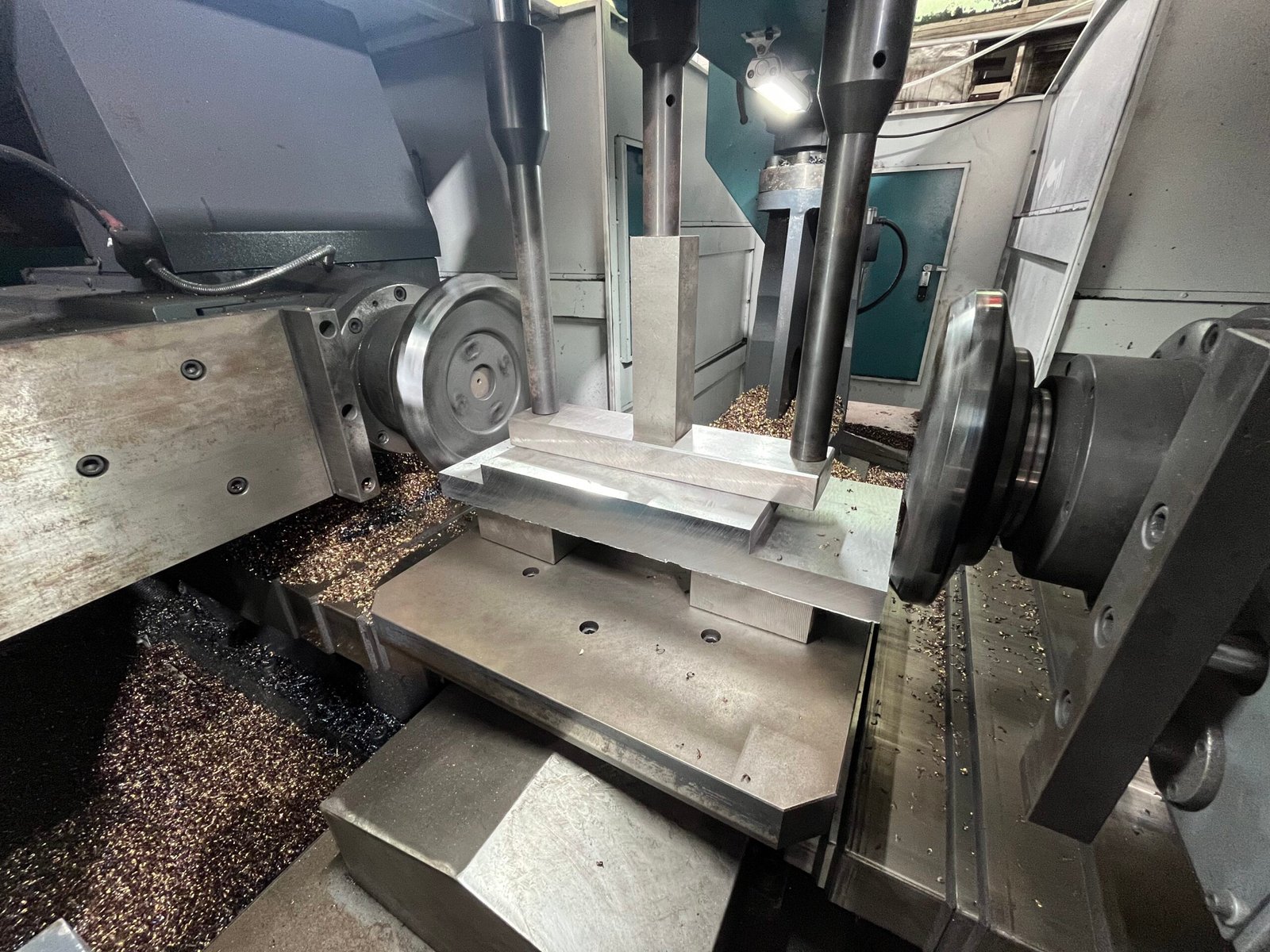

2083 mold steel plate and round bar | anti corrosion plastic mold steel supplier kutu

Steel Grade / Brand

S136 / S136H ESR (Stavax ESR / DIN 1.2083 ESR / AISI 420 ESR)

Primary Applications

High-gloss medical product molds, PVC anti-corrosion molds, optical components

Product Form

Plate & Block

Custom-Machined Steel

Made to Your Drawings — Material and Precision Machining Included.

Precision Machining

6-Face Precision Milling; Total Machining Allowance: 0.10–0.36 mm, Subject to Drawing Requirements.

Minimum Order Quantity(MOQ)

1 Piece — Start with a Small Order to Evaluate Our Quality and Service Before Committing to Larger Purchases.

Lead Time & Shipping

Preparation Time: 3–5 Days After All Order Details Are Confirmed. Shipping Options: Sea Freight, Air Freight, or Express Courier. Transit Time Depends on the Selected Shipping Method and Destination.

Hardness

Annealed (≤ 215 HB) / S136H Pre-hardened (29–33 HRC) / Quenched (48–52 HRC)

Key Composition

C: 0.38%, Cr: 13.6%, Mn: 0.5%, Si: 0.8%
