SLD Steel Plate, High Wear Resistance for Cold Work Dies Precision CNC Machining & Wholesale Supply

Q1: SLD vs. SKD11: How do their performance and applications differ?

Both SLD and SKD11 belong to the high-carbon, high-chromium cold-work steel family, catering to different performance tiers:

• SKD11:

  • Advantages: Cost-effective, excellent wear resistance, and widely available. Ideal for standard-run stamping and cutting dies with moderate stress requirements.

  • Limitations: Prone to coarser carbide segregation, which can lower impact toughness and increase the risk of micro-chipping under high impact or thick-plate blanking.

• SLD:

  • Advantages: Refined through advanced metallurgical processes, offering higher toughness, superior chipping resistance, and exceptional dimensional stability during heat treatment.

  • Best Choice: Choose SKD11 for general-purpose dies with standard production cycles. Choose SLD for high-precision, high-cycle dies, complex progressive stamping, or applications where edge chipping on SKD11 causes unscheduled downtime.

Q2: SLD vs. Cr12MoV: When should you choose each material?

Both are high-chromium cold-work steels, but they differ significantly in metallurgical purity and consistency:

• Cr12MoV (Standard GB Grade):

  • Advantages: Economical initial material cost, making it a traditional choice for standard, budget-conscious stamping applications and low-to-medium volume production.

  • Limitations: Higher variance in carbide distribution and heat-treatment response, which can lead to unpredictable tool life and greater risk of distortion.

• SLD:

  • Advantages: Features a highly refined, uniform microstructure with superior toughness and consistent hardness across the cross-section, typically delivering longer and more predictable service life.

  • Best Choice: Choose Cr12MoV for general, lower-stress tooling where material budget is the primary constraint. Choose SLD when production uptime, edge retention, and strict consistency are critical.

Q3: Why choose 6-side precision pre-milled steel over traditional black/raw bars?

Selecting raw stock versus 6-side precision pre-milled material depends on your shop’s machining workflow and efficiency goals:

• Traditional Black Bars / Forged Blocks:

  • Characteristics: Lower initial material purchase price. However, they retain surface scale, decarburized layers, and require raw-stock squaring, rough milling, and surface grinding before precision CNC work.

  • Best Choice: Suitable for large-scale shops with dedicated heavy-milling capacity that prefer in-house roughing from raw blocks.

• 6-Side Precision Pre-Milled Steel:

  • Characteristics: Surface defects and decarburization are completely removed. Arrives with tight thickness, width, and squareness tolerances, ready for direct CNC finishing or EDM.

  • Best Choice: Ideal for precision parts manufacturers looking to eliminate rough machining time, bypass surface prep, save spindle wear, and shorten total manufacturing lead time.

Premium JIS SLD (SKD11 / AISI D2 Equivalent) High-Wear Precision Machined Steel Plate Industry-standard high-carbon, high-chromium cold work steel offering extreme wear resistance and minimal heat-treatment distortion. Pre-machined on all sides to serve as high-precision stamping dies and cutting tools.

Key Advantages & Capabilities

• Exceptional Wear Resistance: High-chromium alloy composition ensures long service life for heavy-duty punching and blanking tools.

• High Dimensional Stability: Minimal distortion during vacuum heat treatment, maintaining tight tolerances.

• Superior Edge Retention: High compressive strength resists chipping and cracking under severe cutting loads.

💡 Optional On-Demand Machining & Wire-EDM Services

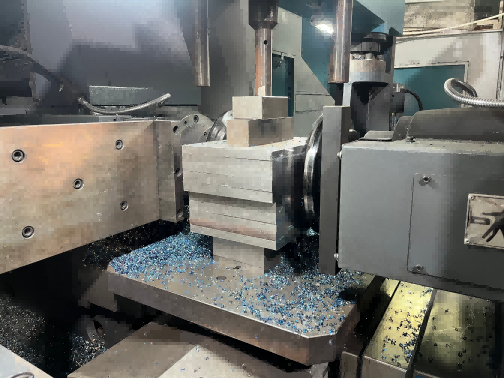

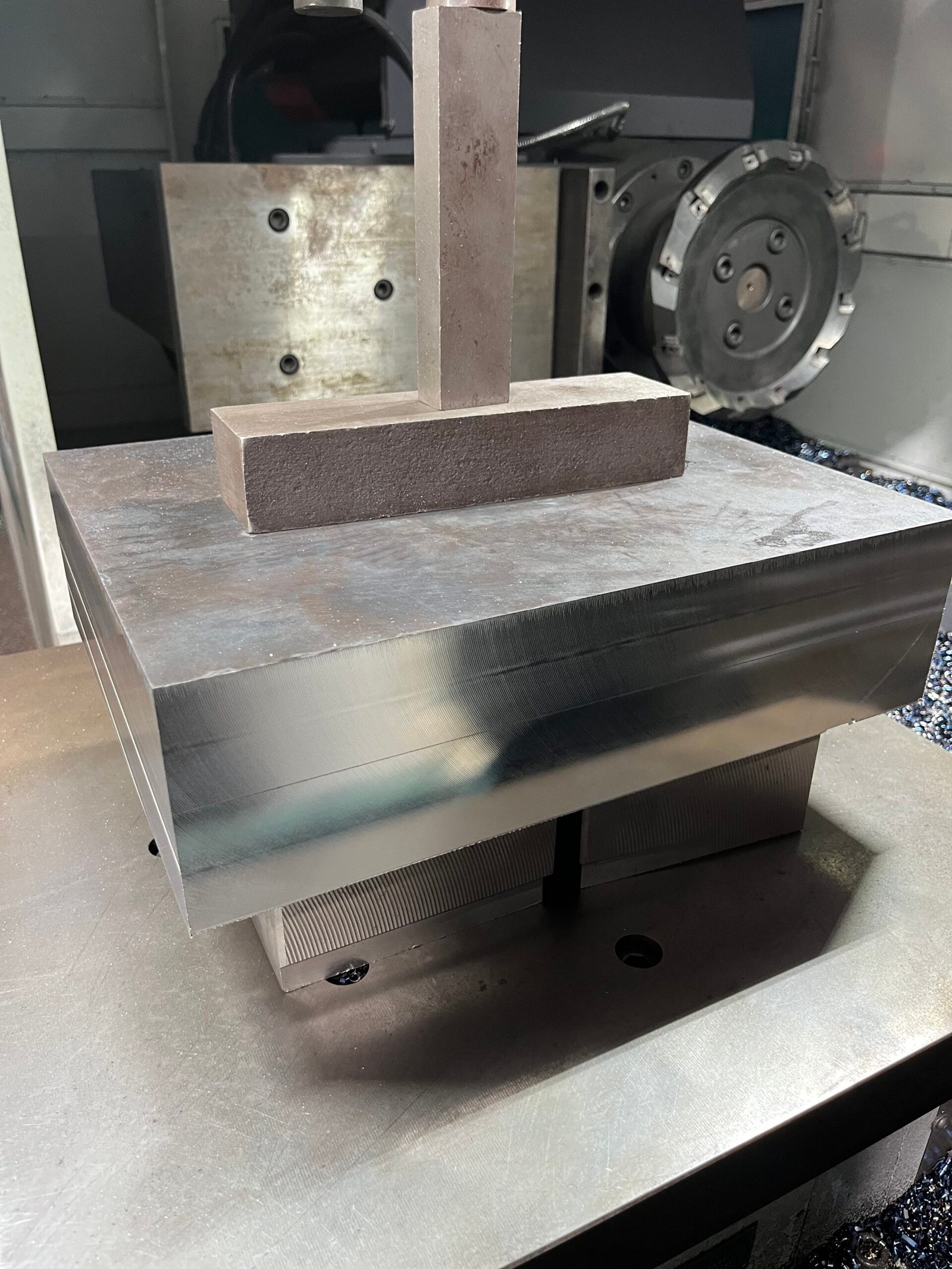

• 6-Side Milling: Pre-machined steel plate blanks ready for cavity milling and wire cutting.

• Surface Grinding: Precision ground surfaces for immediate die-set assembly.

• Saw Cutting: Custom dimension cutting with short lead time for fast delivery.

Technical Specifications

• Grades: JIS SLD | JIS SKD11 | AISI D2 | DIN 1.2379

• Condition: Annealed (≤ 255 HB) / Pre-Hardened | Precision Milled Surface

• Achievable Hardness: 58–62 HRC (after vacuum heat treatment)

• Applications: Stamping dies, blanking punches, shear blades, cold extrusion tools, thread rolling dies.

• 📩 Upload your CAD drawings or dimensional requirements for a 2-hour quote.
