Q1: 1.2083 vs. S136: How do they compare, and when should you choose each?
Both are 13% chromium martensitic stainless plastic mold steels with excellent corrosion resistance and heat-treatability (48–52 HRC), but they differ in metallurgical purity and polishing capability:
1.2083 (Standard DIN Martensitic Stainless Steel):
Advantages: Economical, widely available, and offers reliable corrosion resistance against PVC/corrosive polymers with good mirror polishability for standard technical parts.
Limitations: Standard melting batches may contain subtle micro-inclusions, which can limit ultra-high mirror polishing.
S136 (Premium ESR Stainless Steel):
Advantages: Produced via Electro-Slag Remelting (ESR), achieving ultra-high purity, minimal inclusions, and optical-grade mirror polishability (SPI A1 / A0) along with superior corrosion resistance.
Best Choice: Choose 1.2083 for standard anti-rust plastic molds, medical housings, or components molding mildly corrosive resins on a balanced budget. Choose S136 for optical lenses, transparent light guides, high-end cosmetic containers, or ultra-clean room molds requiring flawless optical finishes.
Q2: 1.2083 vs. 440C: How do they compare, and when should you choose each?
This comparison highlights the difference between a high-chromium plastic mold steel plate and a high-carbon stainless tool steel:
440C (High-Carbon Martensitic Stainless Steel):
Advantages: Contains higher carbon (~1.0%), allowing it to achieve higher working hardness (58–60 HRC) with exceptional wear and abrasive resistance alongside good corrosion resistance.
Limitations: Lower impact toughness and higher brittleness due to coarse chromium carbides; more difficult to machine and weld.
1.2083 (Plastic Mold Stainless Steel):
Advantages: Formulated with lower carbon (~0.4%), delivering superior toughness, better machinability, and lower cracking risk under mechanical or thermal stress, hardened to 48–52 HRC.
Best Choice: Choose 440C for high-wear stainless wear plates, guides, or valve components requiring maximum surface hardness. Choose 1.2083 for plastic injection mold cores and cavity plates where structural toughness, fatigue resistance, and dimensional stability are primary requirements.

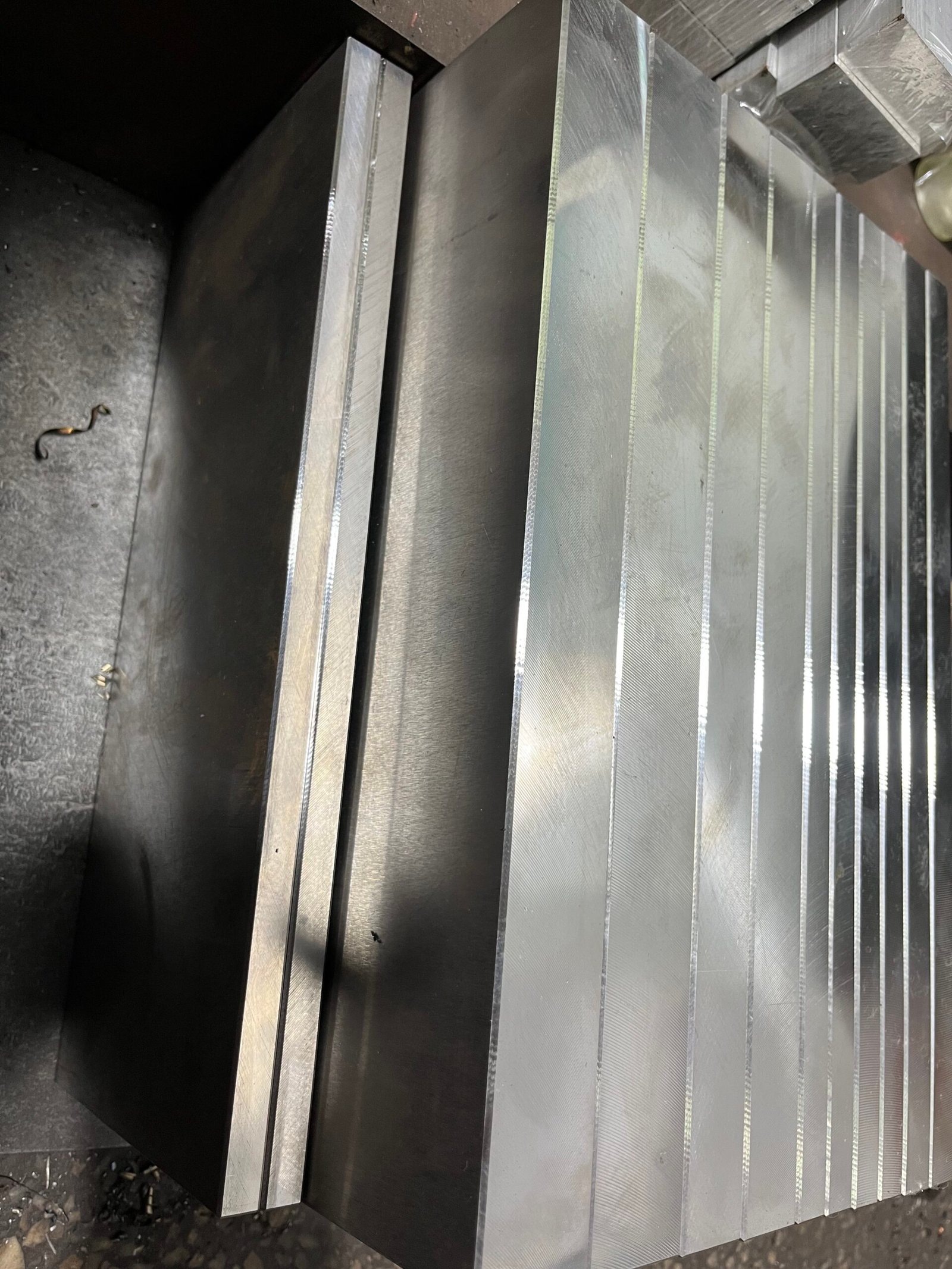

Q3: Why choose 6-side precision pre-milled 1.2083 plates over raw mill plates?
Stainless tool steel plates require pristine surface conditions to ensure uniform heat treatment and optimal polishing performance. Selecting 6-side precision pre-milled 1.2083 plates delivers substantial operational and quality advantages:
Elimination of Decarburization & Surface Defects: Raw hot-rolled or forged mill plates carry surface scale, micro-cracks, and a soft decarburized layer. Pre-milled plates completely eliminate these surface flaws, ensuring you work directly with sound, fully dense stainless core steel.
Protect Fine Tooling & Cut Lead Time: Pre-milled plates arrive squared to precise dimensions, allowing your shop to bypass heavy rough-milling and proceed straight to precision CNC finishing, wire EDM, or polishing.
Tight Tolerances for Instant Clamping: Delivered with strict thickness, width, and squareness tolerances, enabling direct, secure setup in precision vices or fixtures without time-consuming manual alignment.
Lower Total Cost & Better Polishing Yield: Pre-milling relieves surface stresses prior to vacuum heat treatment, reducing distortion risks while cutting spindle hours, tool wear, and skilled labor costs.
Corrosion-Resistant DIN 1.2083 (AISI 420) Precision Machined Mold Steel Chromium-alloyed stainless plastic mold steel offering outstanding wear resistance and excellent corrosion resistance. Supplied pre-machined to exact dimensional tolerances. Key Advantages & Capabilities
Acid & Rust Resistance: Ideal for corrosive resins like PVC and acetates.
Precision Sized: Milled or ground finishes reduce internal stress and setup times.
High Wear Resistance: Durable matrix suitable for high-production runs. 💡 Optional On-Demand Machining & Wire-EDM Services
CNC Surface Milling: Rapid stock preparation for mold plates.
Wire EDM: Precision contour cutting for sliders and inserts.
Gun Drilling: Center and deep water passage drilling. Technical Specifications
Grades: DIN 1.2083 | AISI 420 | JIS SUS420J2
Condition: Annealed | Precision Milled / Ground
Applications: Corrosive plastic molds, pharmaceutical tooling, blow molding dies.
📩 Upload your CAD drawings or dimensional requirements for a 2-hour quote.
