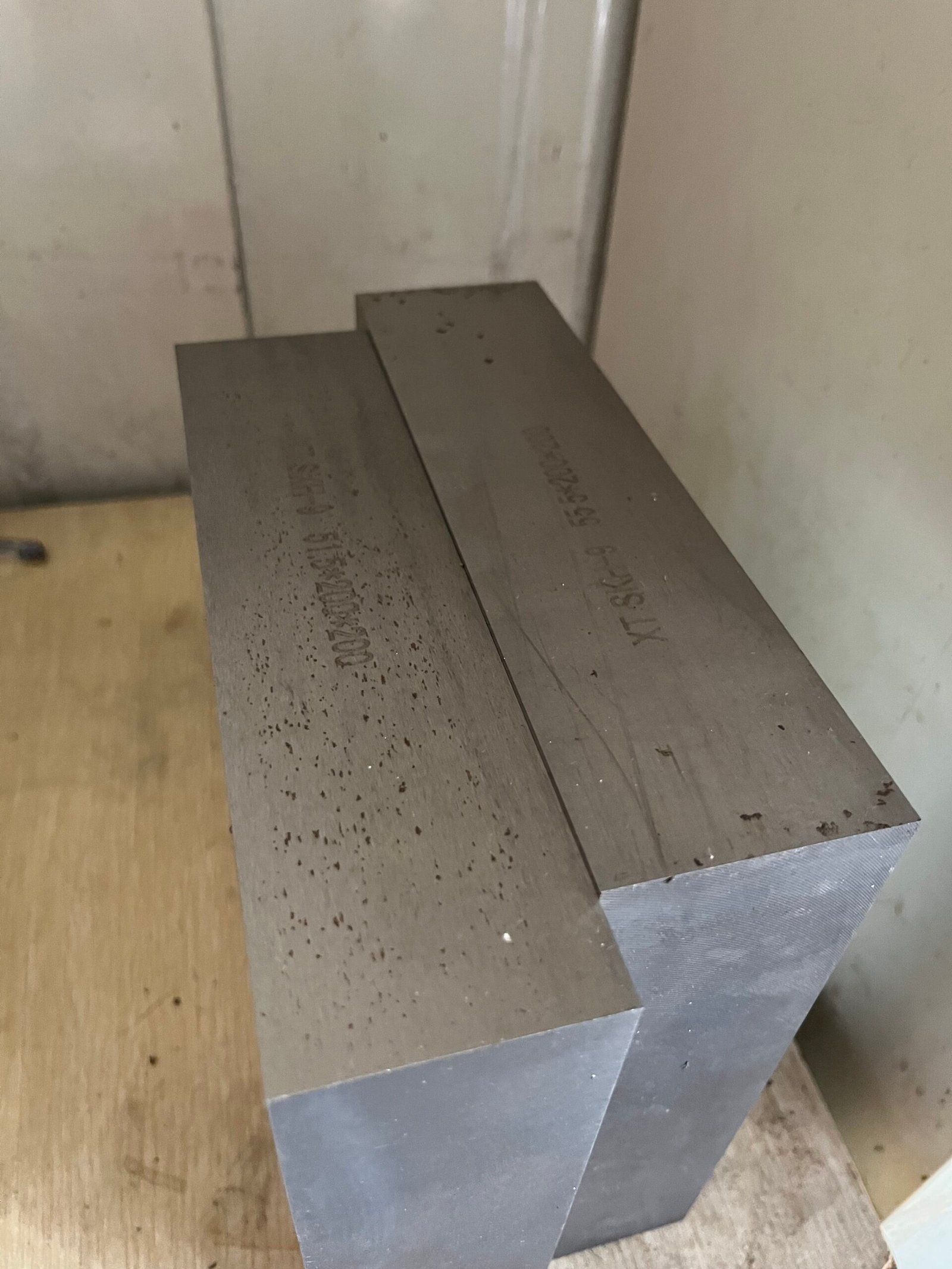

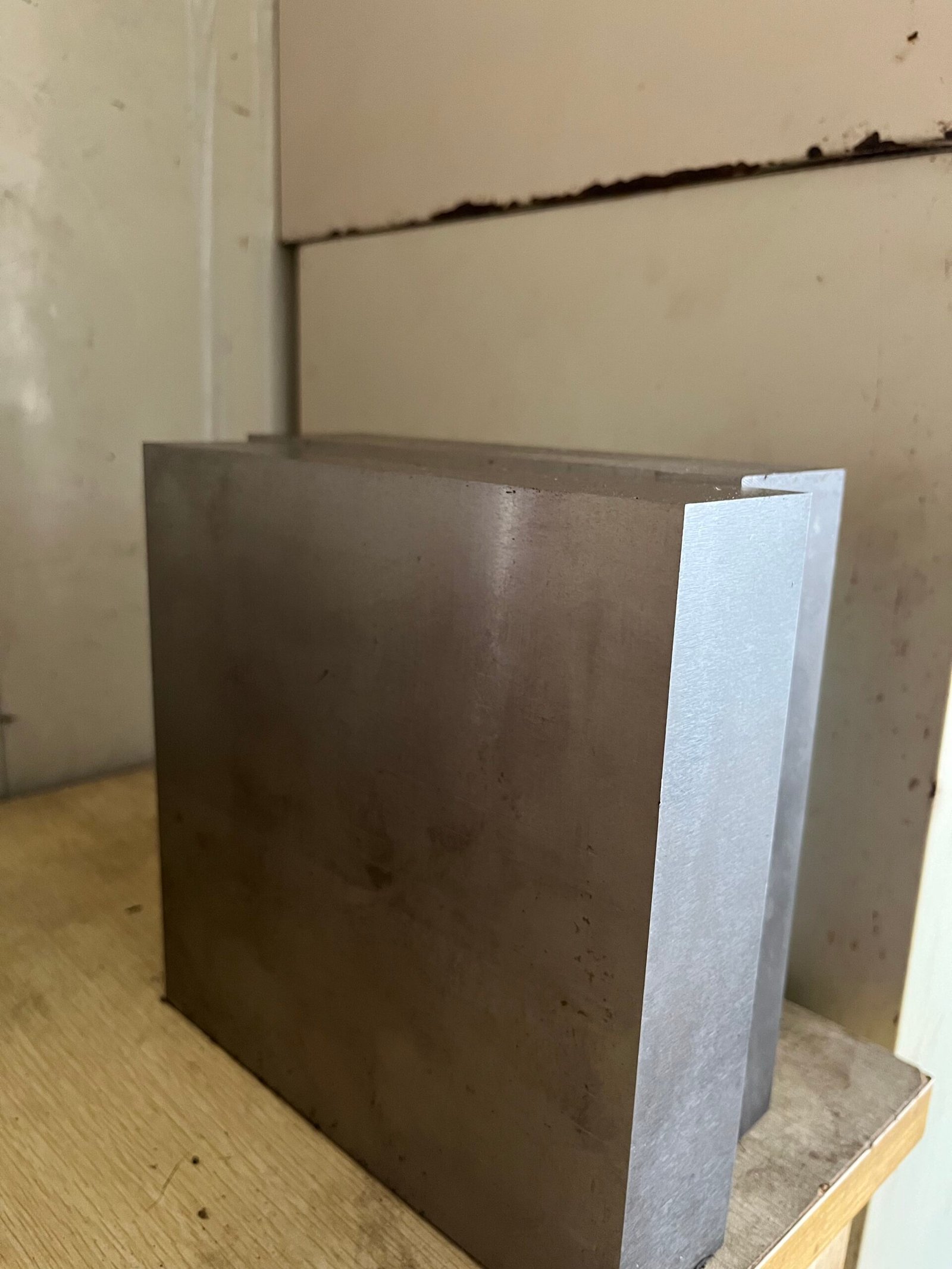

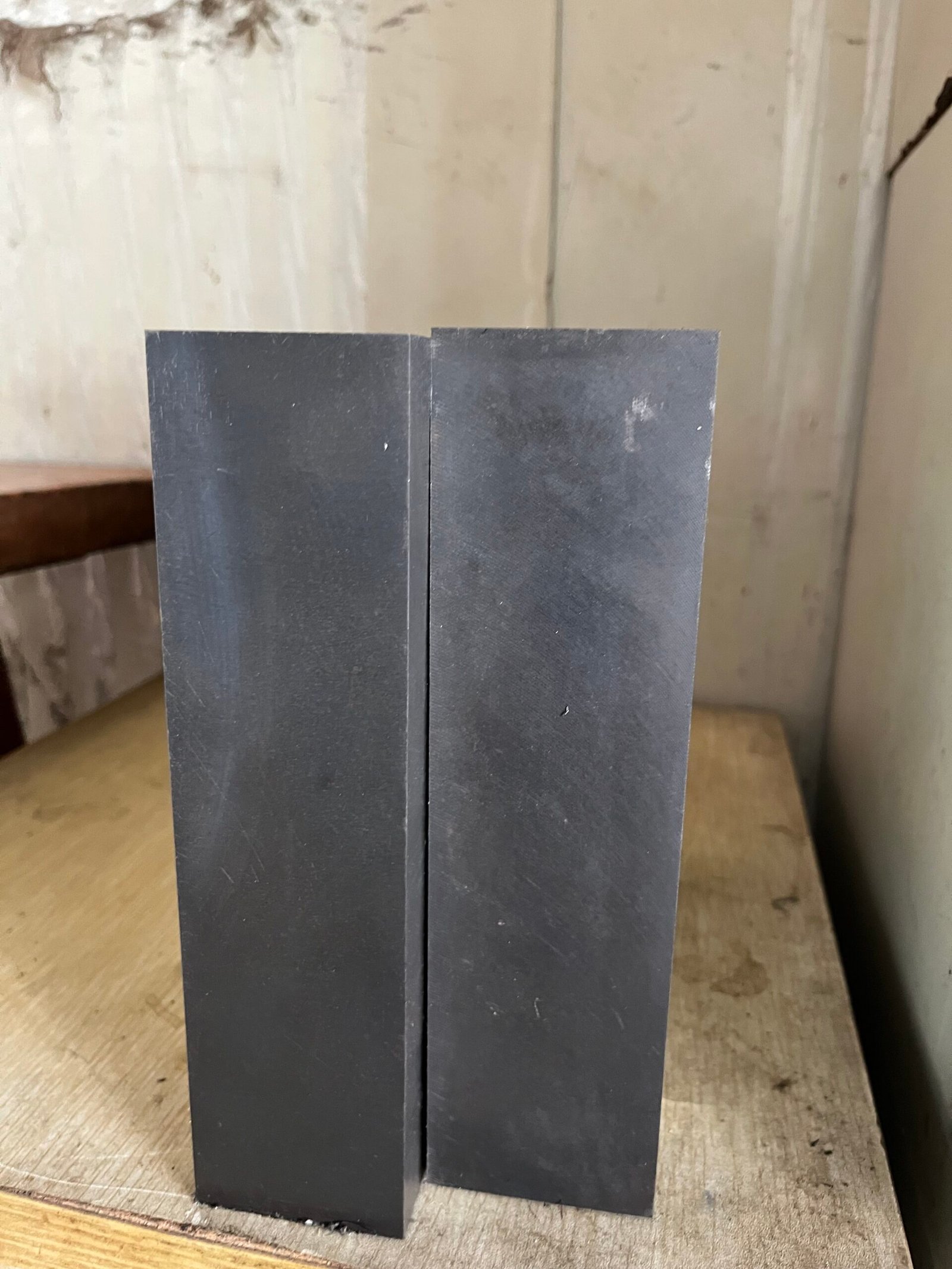

SKH-9 High-Speed Steel Plate for Wear Resistance and Toughness Precision CNC Machining & Wholesale Supply

Steel Grade / Brand

JIS SKH-9 / AISI M2 / DIN 1.3343

Primary Applications

High-Speed Cutting Tools, Twist Drills, Hobs, Broaches, Reamers, and High-Wear Punches

Product Form

Plate & Block

Custom-Machined Steel

Made to Your Drawings — Material and Precision Machining Included.

Minimum Order Quantity(MOQ)

1 Piece — Start with a Small Order to Evaluate Our Quality and Service Before Committing to Larger Purchases.

Lead Time & Shipping

Preparation Time: 3–5 Days After All Order Details Are Confirmed. Shipping Options: Sea Freight, Air Freight, or Express Courier. Transit Time Depends on the Selected Shipping Method and Destination.

Hardness

Annealed: ≤255 HBW; Hardened & Tempered: 62–64 HRC

Key Composition

C: 0.80–0.88%, Cr: 3.8–4.5%, Mo: 4.7–5.2%, W: 5.9–6.7%, V: 1.7–2.1%

Q1: SKH-9 vs. DC53: How do they compare, and when should you choose each?

Both are high-performance steels widely used in heavy-duty stamping, punching, and precision tooling, but they cater to different performance priorities:

  • DC53 (High-Toughness Cold-Work Steel):

    • Advantages: Hardened to 60–62 HRC, offering exceptional impact toughness and superior resistance to edge chipping. It provides better machinability and wire-cutting stability than high-speed steels.

    • Limitations: Lower red hardness and wear resistance compared to SKH-9 under extreme frictional heat or high operating speeds.

  • SKH-9 (M2 High-Speed Steel):

    • Advantages: Achieves higher working hardness (62–65 HRC) with tungsten and molybdenum carbides, providing outstanding red hardness, superior abrasive wear resistance, and long-lasting edge sharpness.

    • Best Choice: Choose DC53 for precision cold stamping, heavy-duty blanking, or punch pins where edge chipping/cracking on standard tool steel is the primary failure mode. Choose SKH-9 for high-speed pressing, thin-sheet precision punching, or applications requiring extreme wear resistance under high friction.

Q2: SKH-9 vs. SKD11: How do they compare, and when should you choose each?

This comparison highlights the transition from a standard High-Carbon High-Chromium Tool Steel to a premium High-Speed Steel (HSS):

  • SKD11 (equivalent to AISI D2):

    • Advantages: Economical and widely available, offering high wear resistance and excellent dimensional stability during heat treatment (58–60 HRC).

    • Limitations: Prone to coarse carbide segregation, lower impact toughness, and a noticeable drop in hardness at elevated operating temperatures.

  • SKH-9 (M2 High-Speed Steel):

    • Advantages: Delivers significantly higher working hardness (62–65 HRC), superior wear resistance, and high resistance to softening at high speeds or friction levels.

    • Best Choice: Choose SKD11 for standard cold stamping dies, medium-volume production, or general tooling where material cost efficiency is paramount. Choose SKH-9 for high-cycle precision punches, continuous high-speed pressing, or when SKD11 experiences rapid abrasive wear.

Q3: SKH-9 vs. Cr8: How do they compare, and when should you choose each?

This comparison contrasts a high-alloy High-Speed Steel with an 8% Chromium medium-alloy cold-work steel:

  • Cr8 (8% Chromium Cold-Work Steel):

    • Advantages: Features an 8% chromium alloy matrix that substantially improves toughness and wire-cutting performance compared to 12% Cr steels (like SKD11/Cr12MoV), while maintaining good wear resistance (58–61 HRC). Offers lower material cost than high-speed steel.

    • Limitations: Lacks the tungsten/molybdenum carbide density of SKH-9, resulting in lower max hardness and thermal wear resistance.

  • SKH-9 (M2 High-Speed Steel):

    • Advantages: Reaches 62–65 HRC with exceptionally high compressive strength and carbide volume, making it vastly superior for micro-punching and severe wear conditions.

    • Best Choice: Choose Cr8 for medium-to-heavy blanking dies, complex wire-cut plate components, or tools needing higher toughness than SKD11 at a budget-friendly price. Choose SKH-9 for ultra-high-precision punches, demanding die inserts, or high-volume stamping where tool longevity and edge sharpness take absolute priority.

High-Wear JIS SKH-9 / AISI M2 Precision Ground High-Speed Steel Molybdenum-based high-speed tool steel supplied precision ground or turned. Features balanced toughness, red hardness, and extreme wear resistance for high-speed cold punches. Key Advantages & Capabilities

  • Precision Ground Finish: Tight thickness and diameter tolerances.

  • High Red Hardness: Retains sharpness under high frictional heat.

  • Extreme Wear Resistance: Ideal for heavy cold stamping cycles. 💡 Optional On-Demand Machining & Wire-EDM Services

  • CNC Turning & Milling: Soft-state rough machining prior to hardening.

  • Wire EDM: Ultra-precise punch pin and die slot cutting.

  • Surface Grinding: High-flatness tool block grinding. Technical Specifications

  • Grades: JIS SKH-9 | AISI M2 | DIN 1.3343

  • Condition: Annealed | Precision Ground / Turned

  • Applications: High-speed cold punches, progressive die inserts, forming tools.

  • 📩 Upload your CAD drawings or dimensional requirements for a 2-hour quote.

auto draft auto draft auto draft

Steel Grade / Brand

JIS SKH-9 / AISI M2 / DIN 1.3343

Primary Applications

High-Speed Cutting Tools, Twist Drills, Hobs, Broaches, Reamers, and High-Wear Punches

Product Form

Plate & Block

Custom-Machined Steel

Made to Your Drawings — Material and Precision Machining Included.

Minimum Order Quantity(MOQ)

1 Piece — Start with a Small Order to Evaluate Our Quality and Service Before Committing to Larger Purchases.

Lead Time & Shipping

Preparation Time: 3–5 Days After All Order Details Are Confirmed. Shipping Options: Sea Freight, Air Freight, or Express Courier. Transit Time Depends on the Selected Shipping Method and Destination.

Hardness

Annealed: ≤255 HBW; Hardened & Tempered: 62–64 HRC

Key Composition

C: 0.80–0.88%, Cr: 3.8–4.5%, Mo: 4.7–5.2%, W: 5.9–6.7%, V: 1.7–2.1%
