Q1: 718H vs. NAK80: How do they compare, and when should you choose each?
Both are pre-hardened plastic mold steel plates supplied ready for direct machining without post-heat treatment risk, but they cater to different core size and finishing priorities:
718H (Pre-Hardened Vacuum-Degassed Steel):
Advantages: Pre-hardened to 33–38 HRC with superior core-to-surface hardness uniformity across large cross-section plates. Excellent for medium-to-large plastic injection molds requiring structural stability and good polishability.
Limitations: Slightly lower hardness and polishability refinement compared to high-purity precipitation-hardened grades.
NAK80 (Pre-Hardened Precipitation-Hardening Steel):
Advantages: Supplied at a higher pre-hardened state (37–43 HRC) with ultra-uniform structure, enabling exceptional mirror polishability (SPI A2/A1), fine EDM texturing, and effortless weld repairs.
Best Choice: Choose 718H for medium-to-large mold cores, automotive interior panels, home appliance housings, or structural mold plates with standard polish requirements. Choose NAK80 for high-precision electronics, clear plastic housings, or complex cosmetic components requiring an outstanding surface finish without post-heat treatment.
Q2: 718H vs. UNIMAX: How do they compare, and when should you choose each?
This comparison highlights the transition from a standard pre-hardened mold steel plate to a premium, high-hardness matrix tool steel plate:
718H (Pre-Hardened Mold Steel):
Advantages: Economical material cost, delivered pre-hardened at 33–38 HRC, eliminating heat treatment lead times and distortion risks. Ideal for standard production runs.
Limitations: Lower compressive strength and wear resistance under extreme clamping forces or highly abrasive resins.
UNIMAX (Premium High-Hardness Matrix Steel):
Advantages: Heat-treated to a high working hardness (54–58 HRC) with exceptional impact toughness, high compressive strength, and resistance to thermal shock and abrasive wear.
Best Choice: Choose 718H for general-purpose plastic injection molds, non-abrasive resins, or large mold bases where direct CNC machining and cost efficiency are key. Choose UNIMAX for severe abrasive environments (e.g., glass-fiber reinforced resins like PA+GF), extreme clamping loads, or ultra-high-volume long-life production runs.
Q3: Why choose 6-side precision pre-milled 718H plates over raw mill plates?
Pre-hardened steel plates like 718H are designed for direct precision machining. Selecting 6-side precision pre-milled 718H plates maximizes shop efficiency and accuracy:
Complete Removal of Mill Scale & Surface Flaws: Raw hot-rolled or forged mill plates carry surface oxidation, micro-cracks, and non-uniform outer layers. Pre-milled plates completely remove these flaws, ensuring you machine directly into sound, homogenous core steel.
Bypass Heavy Roughing & Cut Lead Time: Plates arrive squared and pre-milled to exact target dimensions. Your machine shop can skip time-consuming rough face-milling and proceed straight to precision CNC finishing, wire EDM, or polishing.
Strict Tolerances for Instant Setup: Delivered with tight thickness, width, and squareness tolerances, allowing immediate, secure clamping in precision vises or fixtures without manual alignment.
Lower Total Production Cost: Pre-milling relieves surface stresses prior to fine machining, preventing plate movement and warping during deep cavity milling while saving spindle hours, cutter wear, and labor costs.

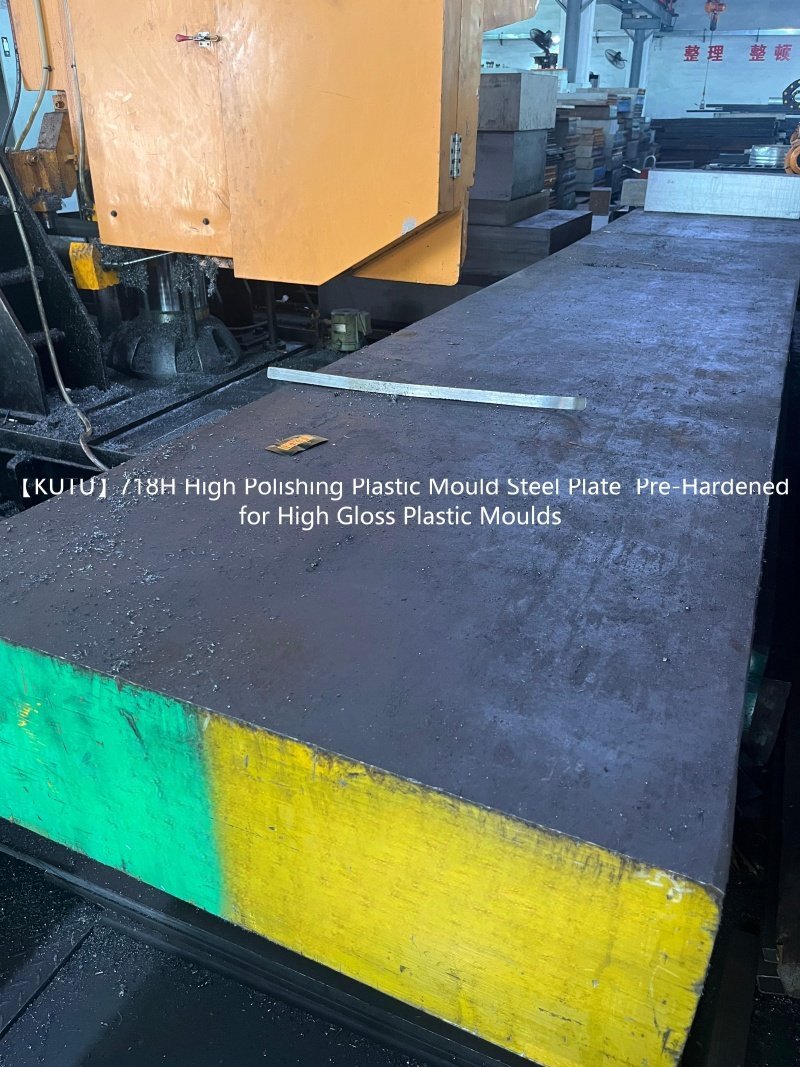

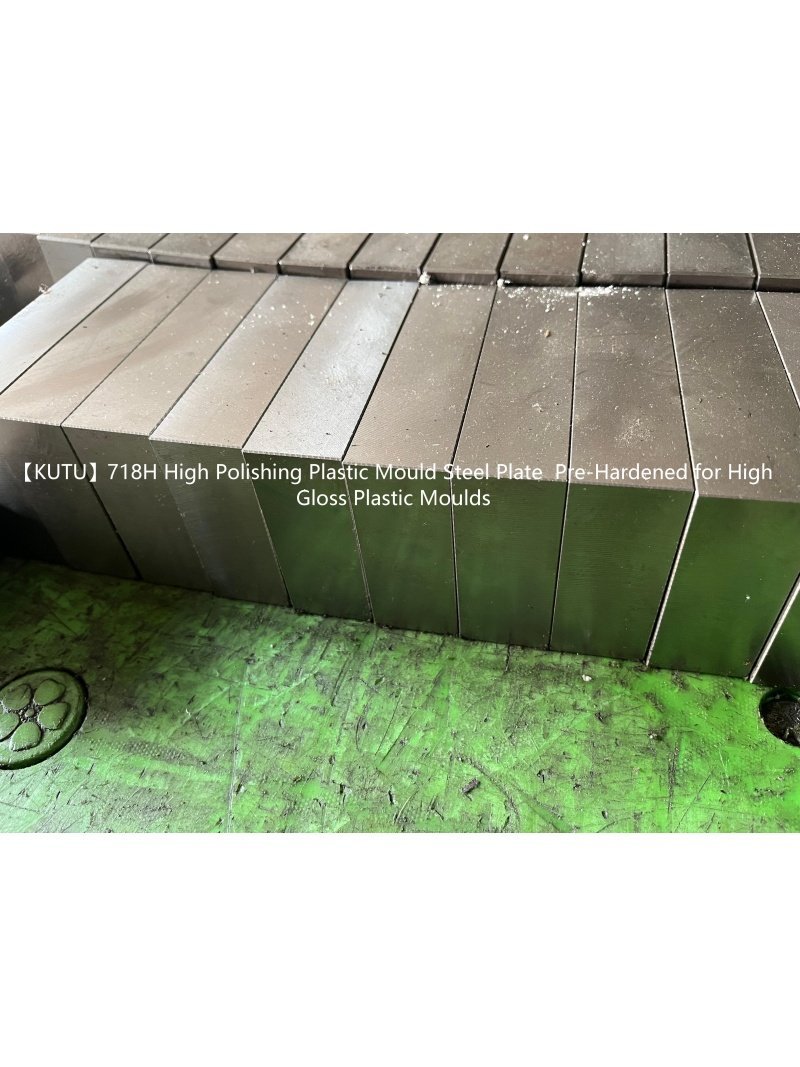

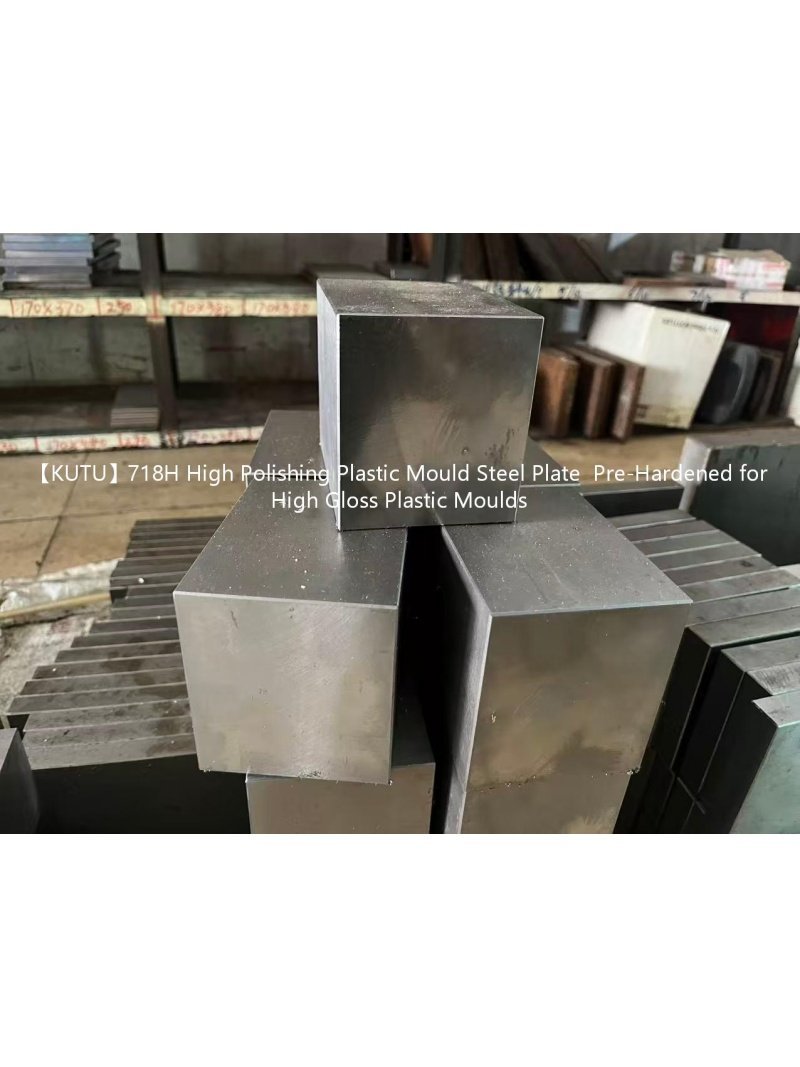

Pre-Hardened 718H (32–38 HRC) Nickel-Alloyed 6-Face Milled Mold Steel Plate Nickel-added pre-hardened mold steel ensuring superior core-to-surface hardness uniformity. Delivered 6-face precision milled for large plastic injection molds. Key Advantages & Capabilities
Uniform Through-Hardness: No soft spots even in massive thick plates.
6-Face Precision Milled: Cleaned faces ready for deep CNC pocketing.
Etching & Texturing Friendly: Superior response to chemical graining. 💡 Optional On-Demand Machining & Wire-EDM Services
Large-Block CNC Milling: Heavy roughing for large automotive molds.
Deep Water Channel Drilling: Multi-axis cooling line creation.
Sizing & Squaring: Precision flame cut or saw cut to size.
Technical Specifications
Grades: 718H | DIN 1.2738 | P20+Ni
Condition: Pre-Hardened (32–38 HRC) | 6-Face Milled Finish
Applications: Automotive bumpers, dashboard molds, large appliance housings.
📩 Upload your CAD drawings or dimensional requirements for a 2-hour quote.
