Mold steel defects are one of the main reasons for mold failure, which can lead to mold scrapping, increased production costs, and delayed delivery. Common mold steel defects include cracking, deformation, inclusions, wear, and rust. Each defect has its specific causes, and corresponding preventive measures can be taken to avoid them. In this article, we will detail the common mold steel defects, their causes, and practical preventive methods to help you reduce losses and improve production efficiency.
Common Mold Steel Defects, Causes and Prevention Methods
1. Cracking (Most Common Defect)
Causes: Cracking is the most serious mold steel defect, mainly caused by the following reasons: improper heat treatment (such as excessive quenching temperature, insufficient tempering), large internal stress during processing, impact load during use, and low toughness of the steel itself.
Prevention Methods:
– Strictly follow the heat treatment specifications, control the quenching temperature and holding time, and perform tempering immediately after quenching.
– Reduce internal stress during processing: adopt reasonable processing procedures, avoid excessive cutting amount, and perform stress relief annealing after processing.
– Choose mold steel with good toughness (such as H13, 718H) for molds that need to bear impact load.
– Avoid sudden cooling and heating of the mold during use.
2. Deformation
Causes: Mold steel deformation refers to the change in size and shape of the steel during processing or use, which affects the precision of the mold. The main causes include uneven heating during heat treatment, improper cooling method, uneven internal structure of the steel, and excessive processing stress.
Prevention Methods:
– Ensure uniform heating during heat treatment: control the heating speed and holding time to make the steel heated evenly.
– Choose the appropriate cooling method: for high-hardness mold steel, adopt oil cooling or air cooling instead of water cooling to reduce deformation.
– Select mold steel with uniform structure (such as pre-hardened steel P20, 718H) to reduce deformation during processing.
– Perform finishing processing after heat treatment to correct slight deformation.
3. Inclusions
Causes: Inclusions are foreign substances (such as oxides, sulfides) in the mold steel, which are mainly caused by impure raw materials, improper smelting process, and pollution during processing. Inclusions will reduce the toughness and wear resistance of the steel, and even cause mold cracking.
Prevention Methods:
– Choose high-purity raw materials and regular manufacturers to ensure the quality of the mold steel.
– Adopt advanced smelting processes (such as electric arc furnace smelting, vacuum smelting) to reduce inclusions in the steel.
– Strengthen the cleaning and inspection during the processing process to avoid foreign substances entering the steel.
– Conduct strict quality inspection before leaving the factory, and reject products with excessive inclusions.
4. Wear
Causes: Wear is a common defect during the use of mold steel, which is mainly caused by long-term friction between the mold and the workpiece, insufficient hardness of the mold steel, poor wear resistance, and improper lubrication during use. Severe wear will affect the precision of the mold and the surface quality of the product.
Prevention Methods:
– Choose mold steel with high hardness and good wear resistance (such as H13, D2, S136) according to the use scenario.
– Perform proper heat treatment (such as quenching and tempering) to improve the hardness and wear resistance of the mold steel.
– Apply lubricating oil or lubricating agent during the use of the mold to reduce friction between the mold and the workpiece.
– Regularly inspect the mold, and repair or replace the worn parts in time to avoid further damage.
5. Rust
Causes: Rust is mainly caused by the contact of mold steel with moisture, corrosive gases or liquids, especially for mold steel without corrosion resistance (such as P20). Rust will damage the surface of the mold, affect the processing precision, and even lead to mold cracking in severe cases.
Prevention Methods:
– Choose mold steel with corrosion resistance (such as S136, 2083) for molds used in corrosive environments.
– After using the mold, clean it in time to remove residual materials and corrosive substances, and dry it thoroughly.
– Apply anti-rust oil or anti-rust coating on the surface of the mold to isolate it from moisture and corrosive media.
– Store the mold in a dry, well-ventilated environment to avoid dampness.
How to Detect Mold Steel Defects in Advance
Early detection of mold steel defects can effectively reduce losses. Here are several common detection methods that you can directly apply in production:
- Visual Inspection: Observe the surface of the mold steel with the naked eye or a magnifying glass to check for cracks, rust, inclusions and other obvious defects. This method is simple and fast, suitable for preliminary inspection.
- Hardness Test: Use a hardness tester to detect the hardness of the mold steel. If the hardness does not meet the standard, it indicates that there is a problem with the heat treatment process, which may lead to wear and other defects.
- Ultrasonic Testing: Use ultrasonic waves to detect internal defects of mold steel (such as internal cracks, inclusions) that cannot be observed by the naked eye. This method is accurate and suitable for high-precision mold steel inspection.
- Magnetic Particle Testing: For ferromagnetic mold steel, magnetic particle testing can be used to detect surface and near-surface cracks. This method is sensitive and can detect tiny cracks.
Key Tips for Reducing Mold Steel Defects
In addition to the above preventive measures, the following key tips can further reduce the occurrence of mold steel defects and extend the service life of the mold:
- Choose the right mold steel grade according to the actual use scenario (such as corrosive environment, high-temperature environment, impact load), and do not blindly pursue low prices.
- Cooperate with regular mold steel manufacturers to ensure that the raw materials and production processes meet the standards, and obtain complete material certificates.
- Strictly follow the heat treatment specifications, and do not arbitrarily change the heat treatment temperature, holding time and cooling method.
- Establish a regular mold maintenance system, clean, inspect and maintain the mold regularly, and deal with potential defects in time.

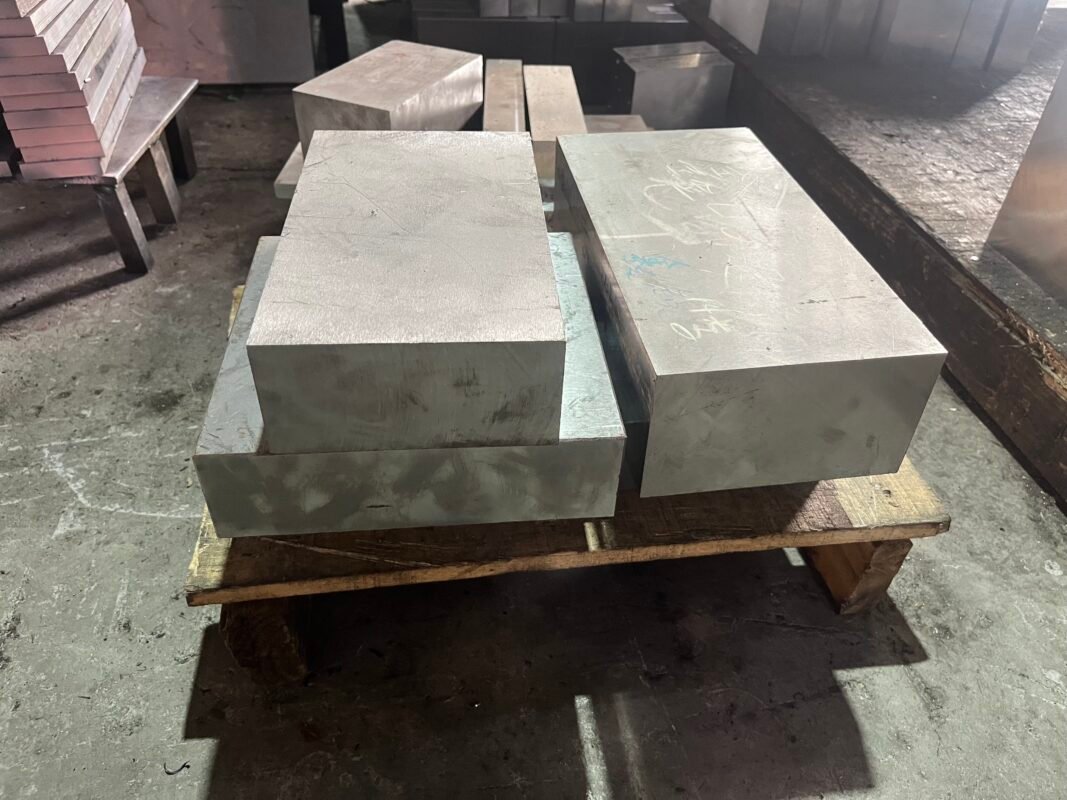

Choosing high-quality mold steel and adopting scientific use and maintenance methods are the key to avoiding mold steel defects. Our mold steel products (including P20, 718H, H13, S136, D2, etc.) are strictly inspected before leaving the factory, with no inclusions, uniform structure and stable performance. We also provide professional technical guidance on heat treatment and mold maintenance to help you reduce defects and improve production efficiency. Contact us now to get a free quote and quality inspection report!
