Q1: D2 vs. DC53: How do they compare, and when should you choose each?
Both are high-performance cold-work tool steel plates, but they represent two different generations of metallurgical design:
D2 (Classic High-Carbon High-Chromium Steel):
Advantages: Economical, globally recognized, and provides excellent resistance to abrasive wear with high compressive strength (58–60 HRC). Widely used for standard cold blanking, shearing, and forming dies.
Limitations: Contains large, coarse eutectic chromium carbides, making it relatively brittle with lower impact toughness. Susceptible to edge chipping under heavy shock loads or micro-cracking during wire EDM.
DC53 (High-Toughness Premium Cold-Work Steel):
Advantages: Developed as an upgraded alternative to D2/SKD11. Reaches higher working hardness (60–62 HRC) while offering nearly double the impact toughness of D2, dramatically finer carbide dispersion, and superior wire-cutting stability with minimal residual stress.
Best Choice: Choose D2 for standard cold blanking dies, wear plates, forming rolls, or general tooling with moderate shock loads where material cost efficiency is primary. Choose DC53 for heavy-duty punch pins, precision progressive dies, thick-plate blanking, or applications where D2 suffers from edge chipping, breaking, or stress cracking after wire EDM.
Q2: D2 vs. SKD11: How do they compare, and when should you choose each?
This comparison contrasts the American AISI specification with the Japanese JIS specification within the classic 12% chromium tool steel family:
D2 (AISI Standard):
Advantages: Universally specified across American and European engineering standards. Features high carbon (~1.5%) and high chromium (~12%) for solid wear resistance and dimensional stability during heat treatment (58–60 HRC).
Limitations: Quality can vary depending on mill origin; standard melting batches may show anisotropic (directional) grain structure in larger plates.
SKD11 (JIS Standard):
Advantages: Produced under strict Asian/Japanese metallurgical controls with vacuum degassing and refined ladle treatment. Offers slightly tighter alloy composition control, more uniform carbide distribution, and consistent machinability.
Best Choice: Choose D2 when client engineering drawings or North American export project specifications explicitly request AISI D2. Choose SKD11 for Japanese/Asian OEM tooling, precision stamping die inserts, or local production where high dimensional predictability and refined heat-treatment consistency are required.
Q3: Why choose 6-side precision pre-milled D2 plates over raw mill plates?
High-carbon high-chromium steels like D2 are inherently abrasive to machine and highly sensitive to surface stress concentration. Selecting 6-side precision pre-milled D2 plates provides substantial production and quality benefits:
Complete Removal of Decarburized Layer: Raw hot-rolled or forged D2 mill plates carry surface scale and a soft, decarburized outer layer. Pre-milled plates remove these defects completely, ensuring your heat-treatment yields maximum, uniform surface hardness (58–60 HRC) without soft spots.
Bypass Heavy Roughing & Protect CNC Cutters: D2 is tough and abrasive to rough-machine in its raw annealed state. Pre-milled plates arrive squared and pre-machined to exact target dimensions, allowing your shop to bypass cutter-wearing face milling and proceed directly to precision CNC finishing or wire EDM.
Strict Tolerances for Instant Clamping: Delivered with precise thickness, width, and squareness tolerances, enabling direct and secure setup in precision vises or fixtures without time-consuming manual indicator alignment.
Lower Total Job Cost & Reduced Thermal Warping: Pre-milling relieves surface forging and rolling residual stresses prior to final cavity milling, significantly reducing distortion risks during vacuum heat treatment while saving machine spindle hours, cutter costs, and scrap.

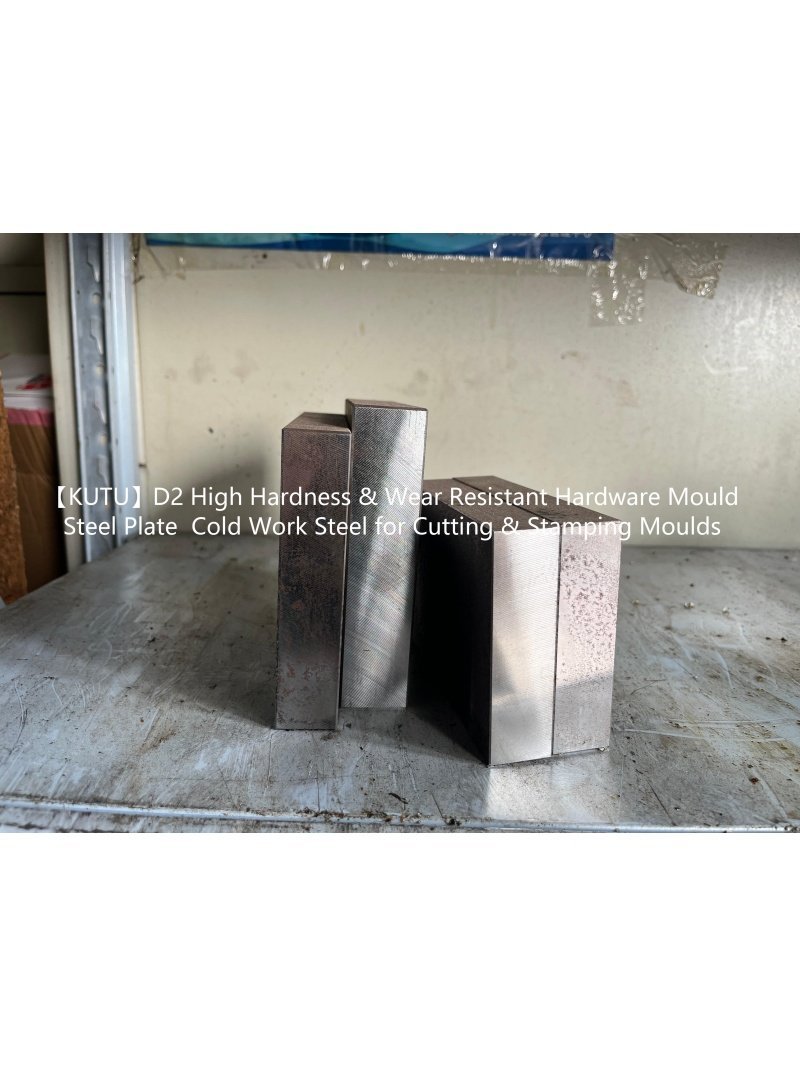

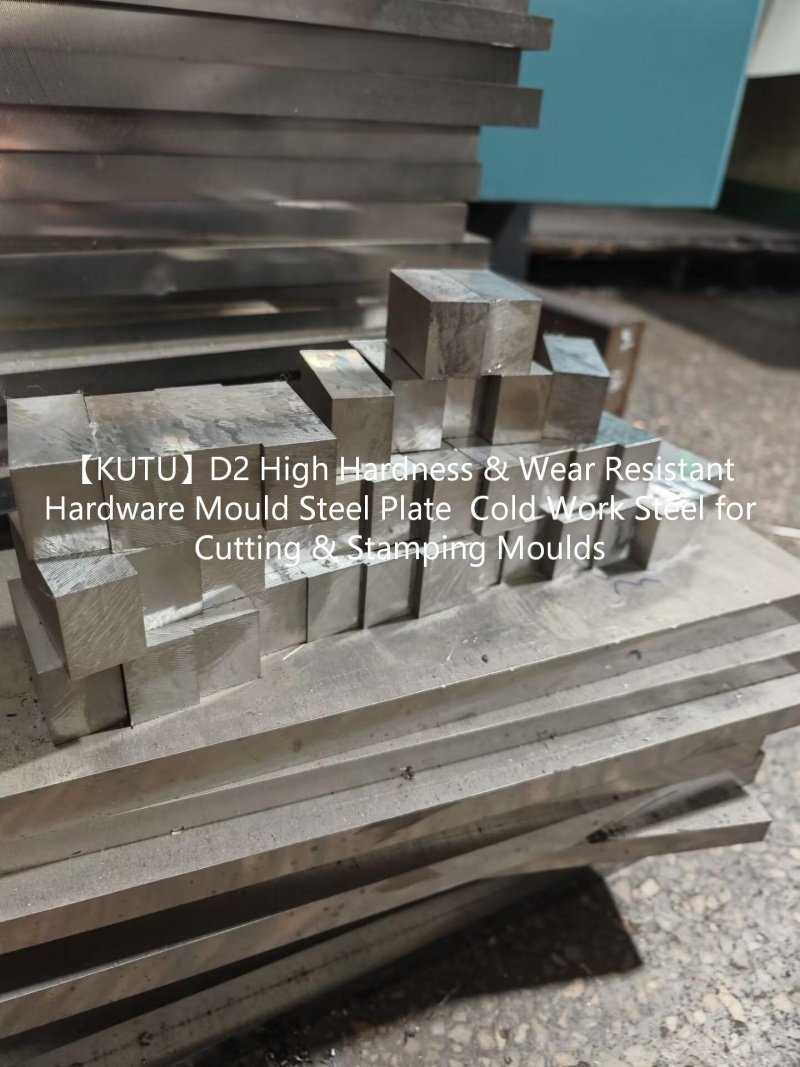

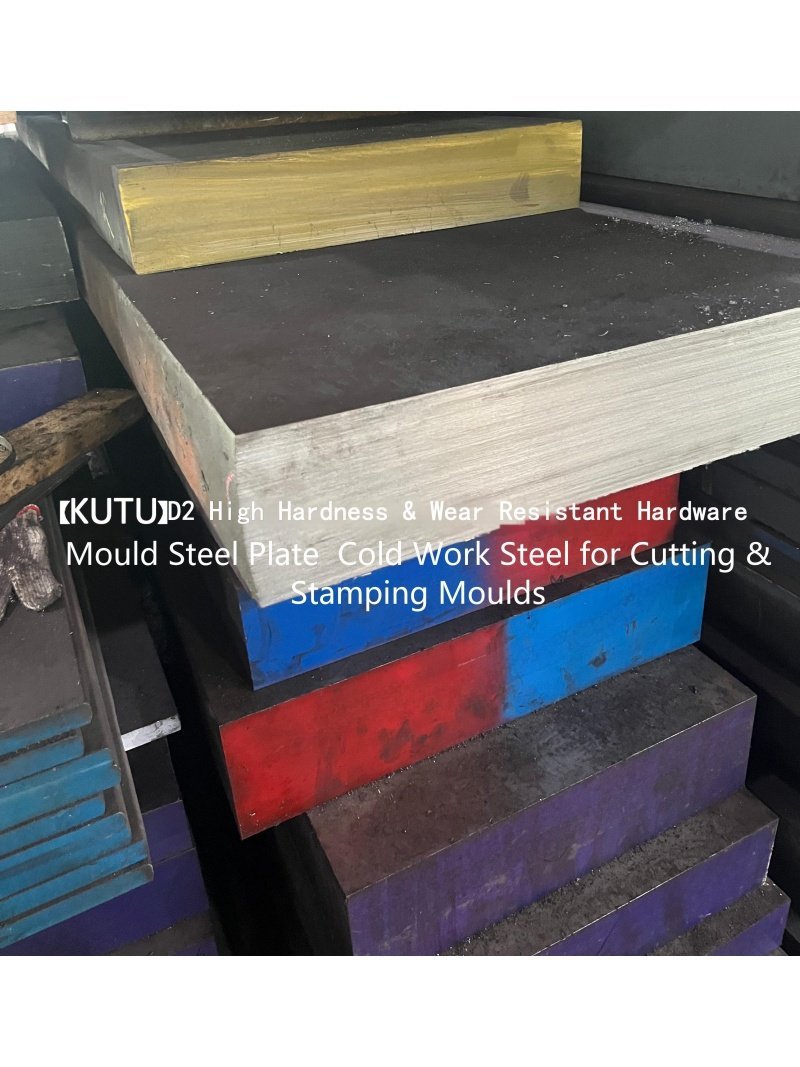

Premium DIN 1.2379 / D2 6-Face Precision Milled Cold Work Tool Steel Plate Premium European-standard D2 tool steel providing extreme resistance against sliding abrasion. Delivered 6-face precision milled for heavy-duty stamping tools and shear blades. Key Advantages & Capabilities
6-Face Precision Milled: Reduces shop floor setup and squaring time.
High Hardness (up to 62 HRC): Maintains razor-sharp cutting edges.
High Resistance to Galling: Excellent for heavy sheet metal shearing. 💡 Optional On-Demand Machining & Wire-EDM Services
Precision Edge Grinding: Shearing blade edge grinding.
CNC Pre-Roughing: Complex punch cavity milling.
Wire EDM: Intricate stamping die component profile cutting. Technical Specifications
Grades: D2 | DIN 1.2379 | X153CrMoV12
Condition: Annealed | 6-Face Precision Milled
Applications: Heavy blanking dies, industrial shear knives, cold rolls.
📩 Upload your CAD drawings or dimensional requirements for a 2-hour quote.
